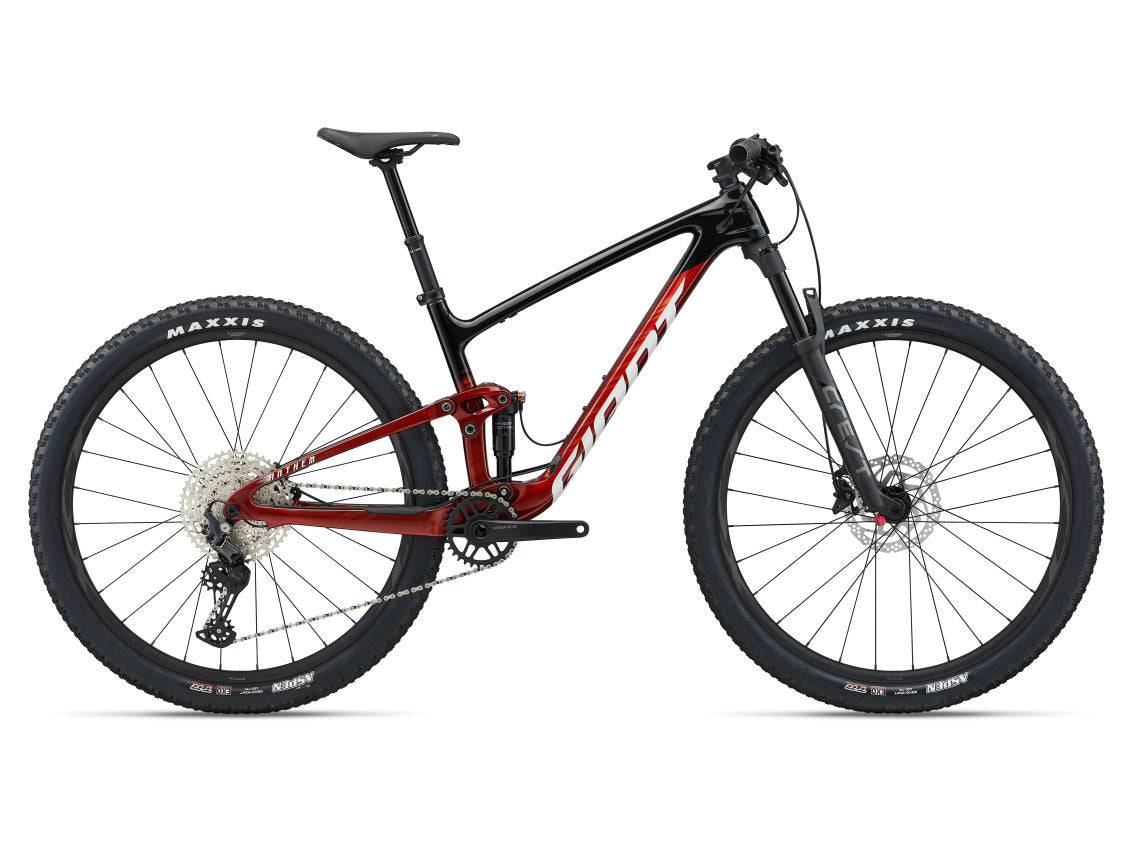

Built for modern XC racing, this full-composite flyer tackles steep singletrack climbs and technical descents with speed and control. With FlexPoint Pro rear suspension and race-ready geometry, it puts you at the front of the pack.
Key Performance Factors
Ultra-efficient
Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.
Superior control
FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
29er stability and speed
Frame geometry and suspension are optimized for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
Techs & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
FlexPoint Pro Suspension Technology
Developed as a superlight rear suspension setup for XC bikes that demand efficiency, control and responsive handling, FlexPoint Pro is a linkage-driven, single-pivot system that delivers 100mm of rear-wheel travel. It’s engineered with a full-composite swingarm that significantly reduces overall frame weight.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide
Sizing to be used as a reference only and based on rider's height. Please check with us to determine the correct size.
- S: 163cm - 172cm
- M: 171cm - 180cm
- L: 179cm - 188cm
- XL: 187cm - 198cm
Specs
| Sizes | S, M, L, XL |
| Colours | Mars Dust |
| Frame | Advanced-grade composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle |
| Fork | Crest SL, 110mm, Boost 15x110 QR |
| Shock | Giant Crest, 165/45, remote, custom tuned for Giant |
| Handlebar | Giant Contact XC Flat, 760x35mm |
| Grips | SRAM TwistLoc |
| Stem | Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm |
| Seatpost | Giant Contact Switch Core dropper, remote
S: 100mm travel / 30.9 x 350mm
M: 120mm travel / 30.9 x 400mm
L: 120mm travel / 30.9 x 400mm |
| Saddle | Giant Grit Sport |
| Pedals | N/A |
| Shifters | Shimano Deore SL-M6100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore RD-M6100 |
| Brakes | Shimano Deore MT410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano Deore MT401 |
| Cassette | Shimano Deore M6100, 10x51 |
| Chain | KMC X-12 |
| Crankset | Praxis Cadet, 32t, 55mm chainline
S:170mm, M:175mm, L:175mm, XL:175mm |
| Bottom Bracket | Press fit |
| Rims | Giant XCT 29, 25mm inner width |
| Hubs | Shimano C500, sealed |
| Spokes | Stainless |
| Tires | Maxxis Aspen 29x2.4, foldable, 120tpi, TLR, EXO, tubeless |
| Extras | Tubeless prepared, 2.4" max tire size, 34t max chainring size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Mars Dust
