Component | Specification |
---|

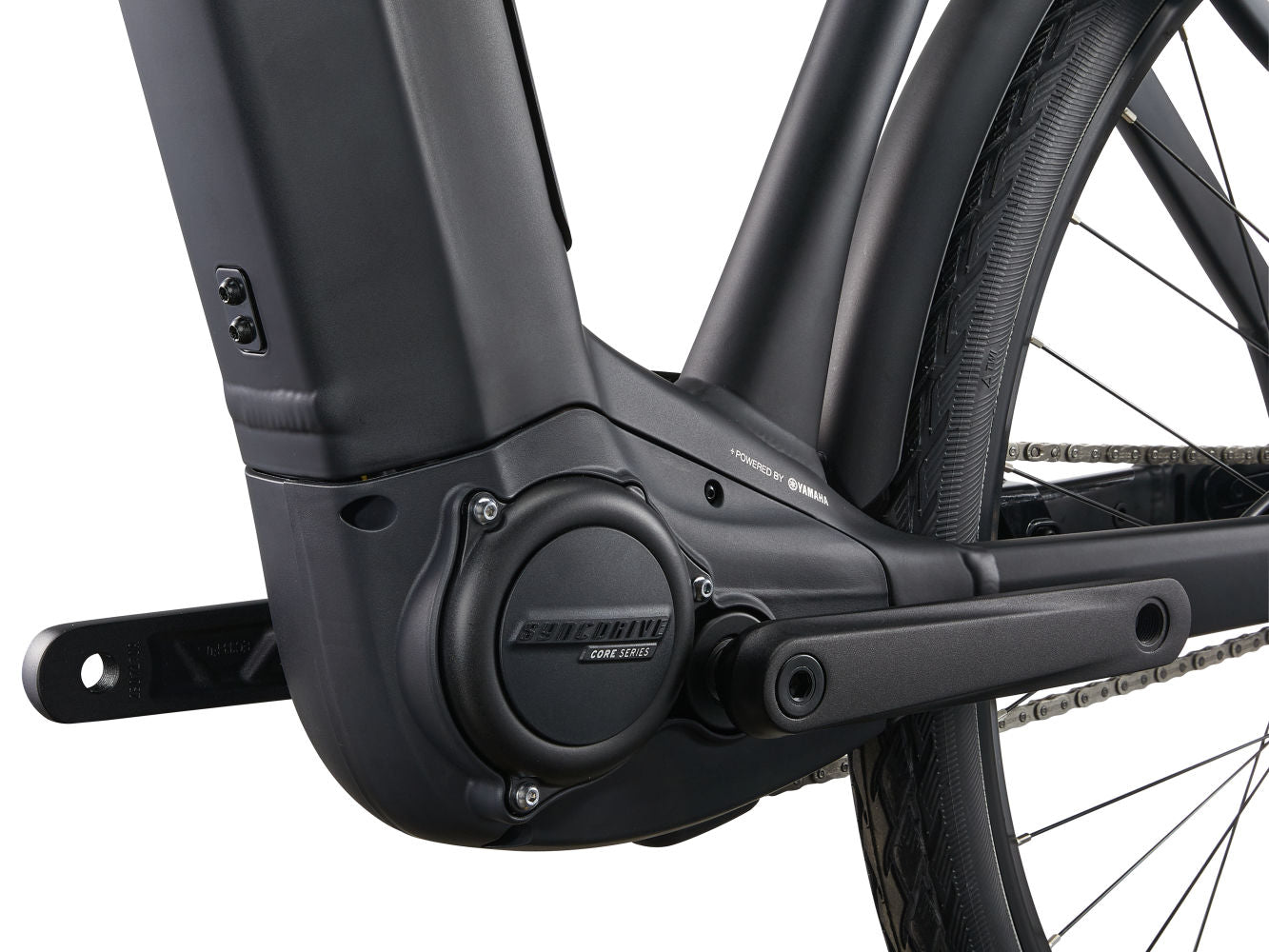

Motor | Giant SyncDrive Core2, 55Nm, Powered by Yamaha, PedalPlus 6-sensor technology |

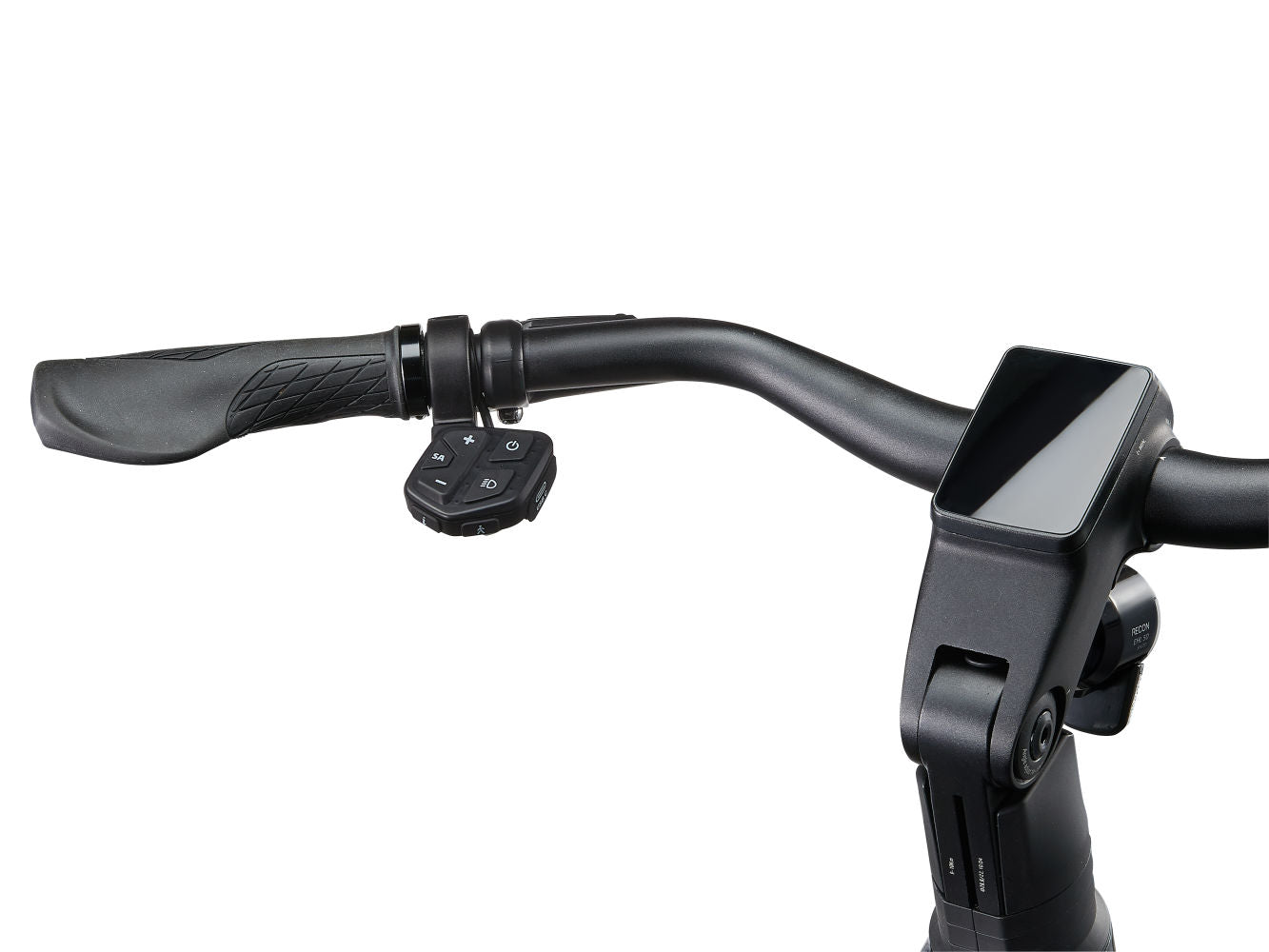

Controller | Giant RideControl Ergo 2 remote, Smart Assist automatic mode, 5 support levels, USB-C (10W) |
Display | Giant RideDash EVO, high-angle visibility, 3" full color LCD display, on-board navigation |
Battery | Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production |
Charger | EnergyPak 4A smart charger compact, 60% in 2:00h |
Sizes | S, M, L, XL |
Colours | Cold Iron/Black, Sea Sparkle/Black |
Frame | ALUXX SL-grade aluminum, integrated battery, M10 trailer mount, KSA40 kickstand mount |
Fork | SR Suntour NEX E25 700C Coil 63mm travel |
Shock | n/a |
Handlebar | Giant Contour GT, cable integrated, 31.8mm |
Grips | Giant Comfort Ergo Microtech Plus Lock-on |
Stem | Giant Contour, EVO display integrated, adjustable |
Seatpost | Suspension 2-bolt micro-adjustable, 30.9mm |
Saddle | Selle Royal Look-In gel |
Pedals | anti-slip |
Shifters | Shimano Nexus 7sp REVOSHIFT |
Brakes | Tektro HD-M275, hydraulic disc, 180mm [F], 160mm [R] |
Brake Levers | Tektro HD-M275 |
Cassette | 18T |
Chain | KMC Z1e HX, e-bike optimized |
Crankset | Aluminum, 38T |
Bottom Bracket | n/a |
Rims | Giant double wall, alloy |

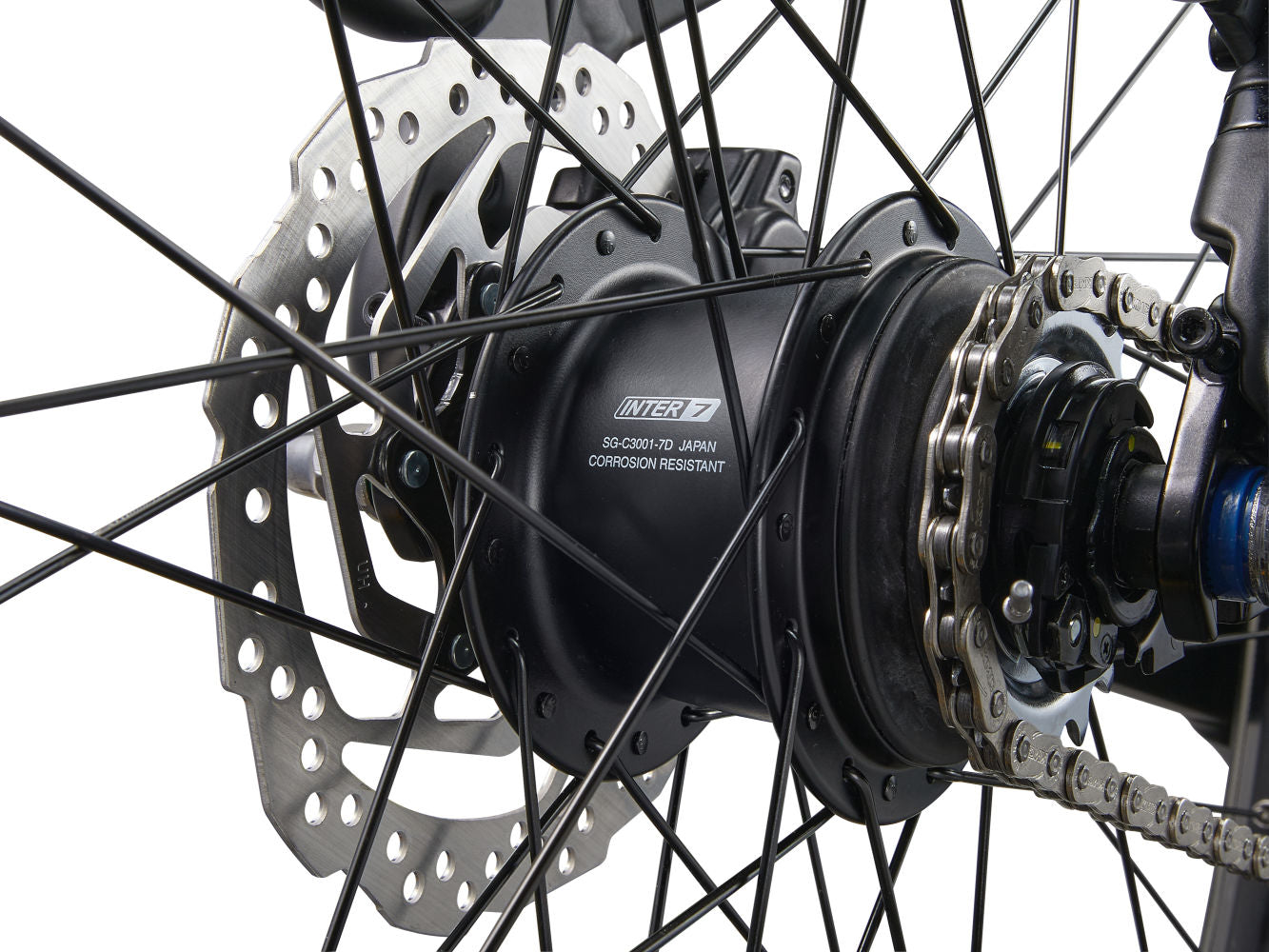

Hubs | Shimano [F], T200 9mm QR, [R] Shimano Nexus 7 |
Spokes | Stainless steel |
Tires | Schwalbe Marathon 622x50 Green Guard |
Extras | Alloy fenders, KSA40 direct mount kickstand |

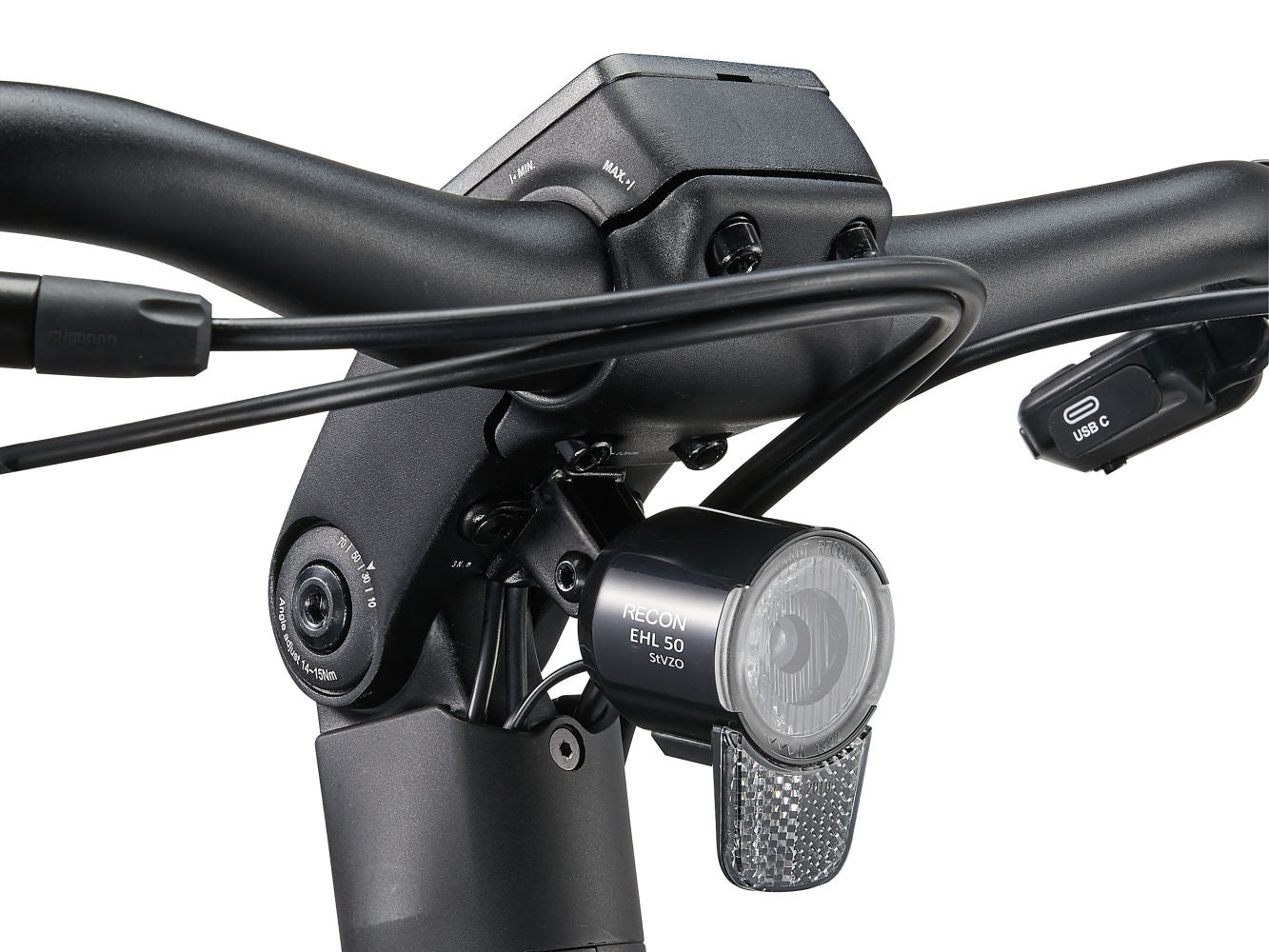

Lighting | Giant Recon HL50, 50 lux [F]AXA Juno 6-12V E-bike tail light [R] |
Lock | ABUS Xplus Battery Lock / Abus 5755L XPLUS NR frame/rear wheel lock |
Carrier | MIK rack. System bag & basket compatible |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
